Adjustable Prop
Specification
| Hight | 2.00 mtr to 3.60 mtr. |
| Outter Pipe OD | 60 mm |
| Inner Pipe OD | 48 mm |
| Weight | 17 to 18 Kg (approx.) |

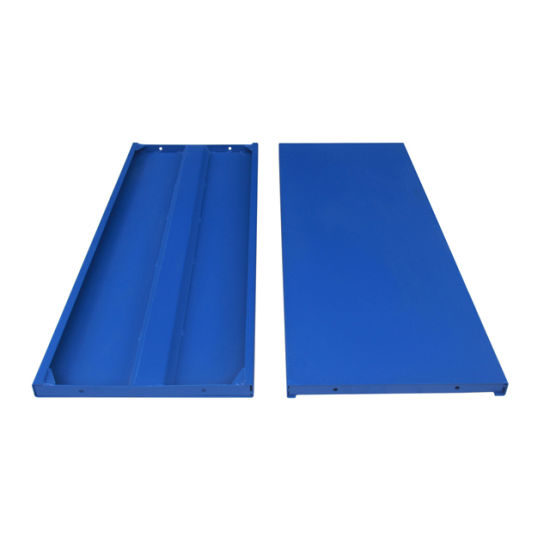

Shuttering Sheet
Specification
| Standard Size | 115 cm X 60 cm 90 cm X 60 cm |
| Side Hight | 3.8 cm |
| Sheet thickness | 2 mm |
| Weight | 15 to 16 kg (approx.) |
Adjustable Shuttering Sheet
Specification
| Standard Size | 115 cm X 30 cm 90 cm X 30 cm |
| Side Hight | 3.8 cm |
| Sheet thickness | 2 mm |
| Weight | 7 to 8 kg (approx.) |
Adjustable Span
Specification
| Standard Size | 2.5 Meter / Open 4 Meter |
| Length | 2.65 to 4.15 mtr |
| Weight | 42 to 43 kg (approx.) |
H Frame SET
Specification
| Standard Size | 2H Frame & 4 Adjuster |
| Length | 2 mtr. |
| Width | 1 mtr. |
| Height | 2 mtr. |
| Weight | 42 to 43 kg (approx.) |
Column Box
Specification
| Coloum box Rectangular type |
| Coloum box Circular type |

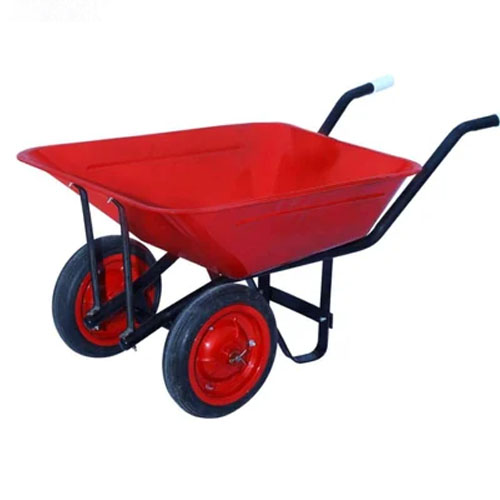

Wheel Barrow
Specification
| Single & Double wheel |
Scaffolding Spanner
Specification
| Size | 40/40 Forged Fixed/Double 40/40 Forged Swival/Rotating |

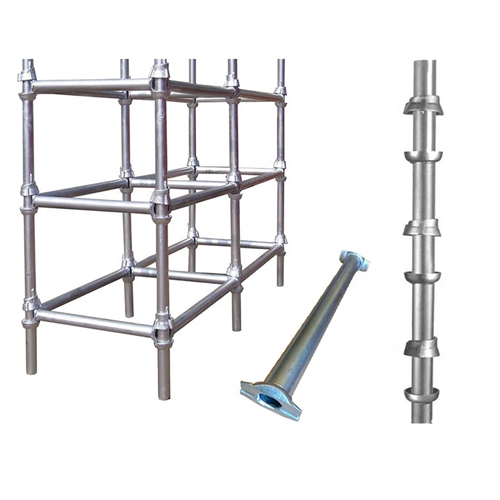

Cuplock Scaffolding System
Specification
| Standards/Verticals | 1, 1.5, 2, 2.5, 3 mtr. |
| Ledgers/Horizontals | 5, 1, 1.2, 1.5, 2, 2.5 mtr. |
